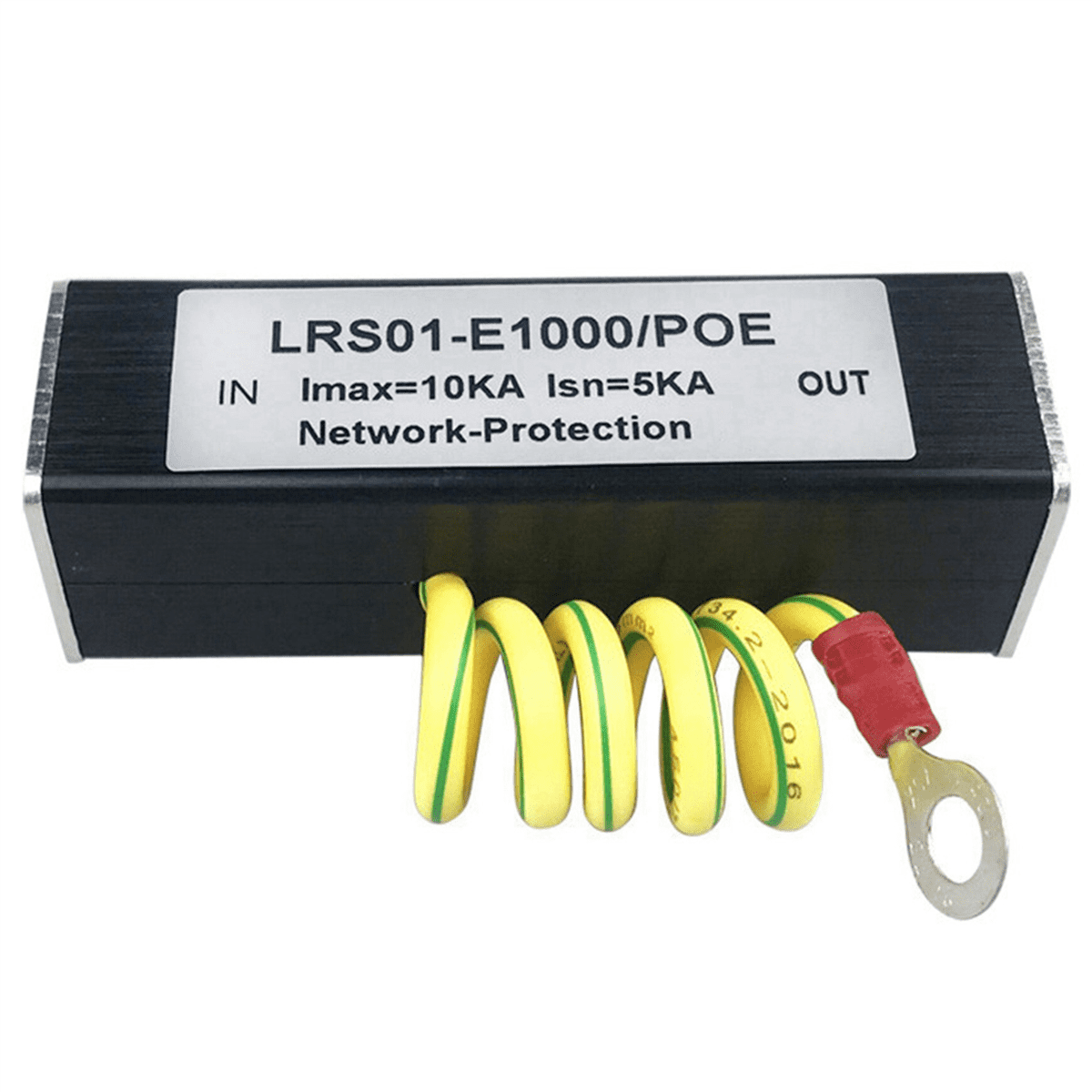

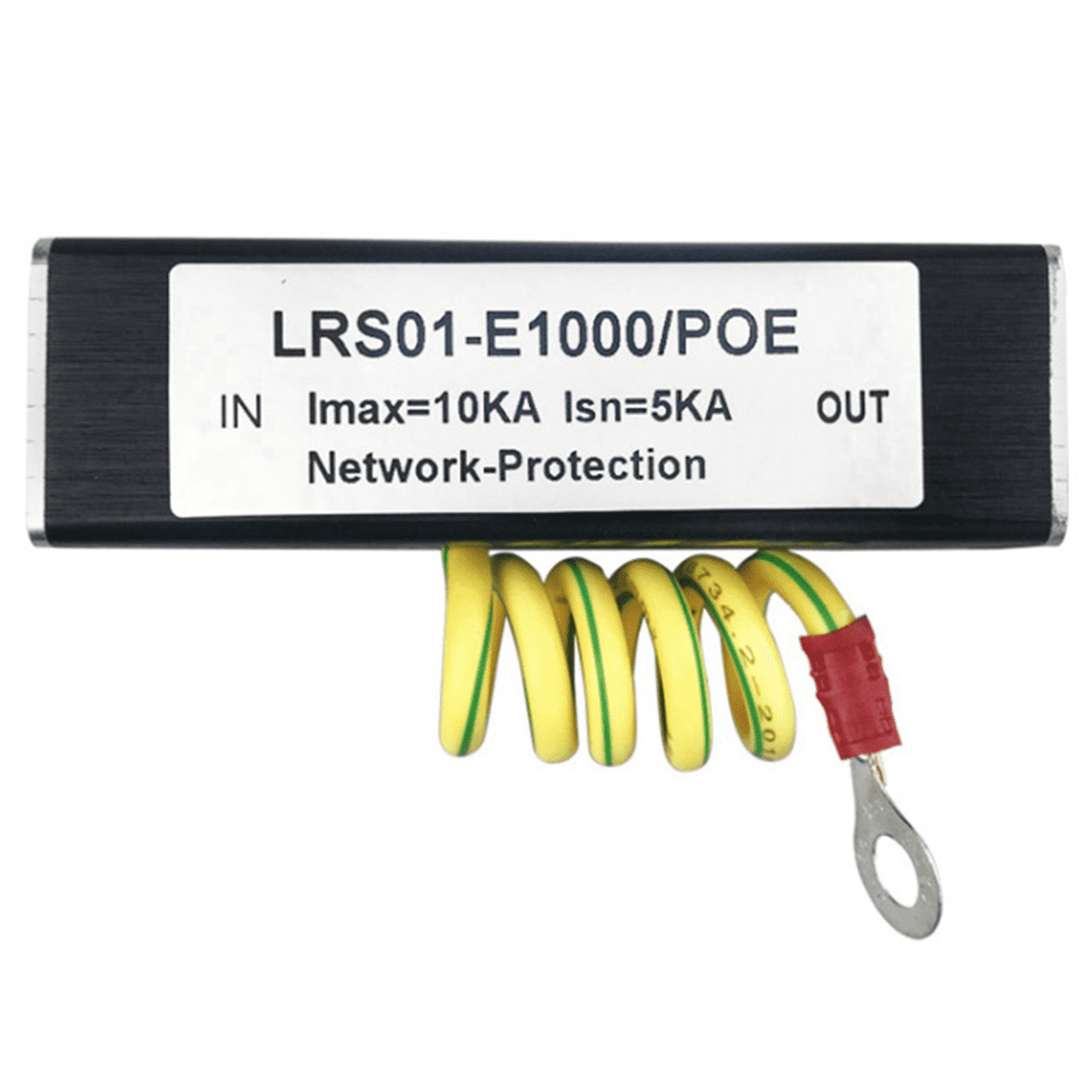

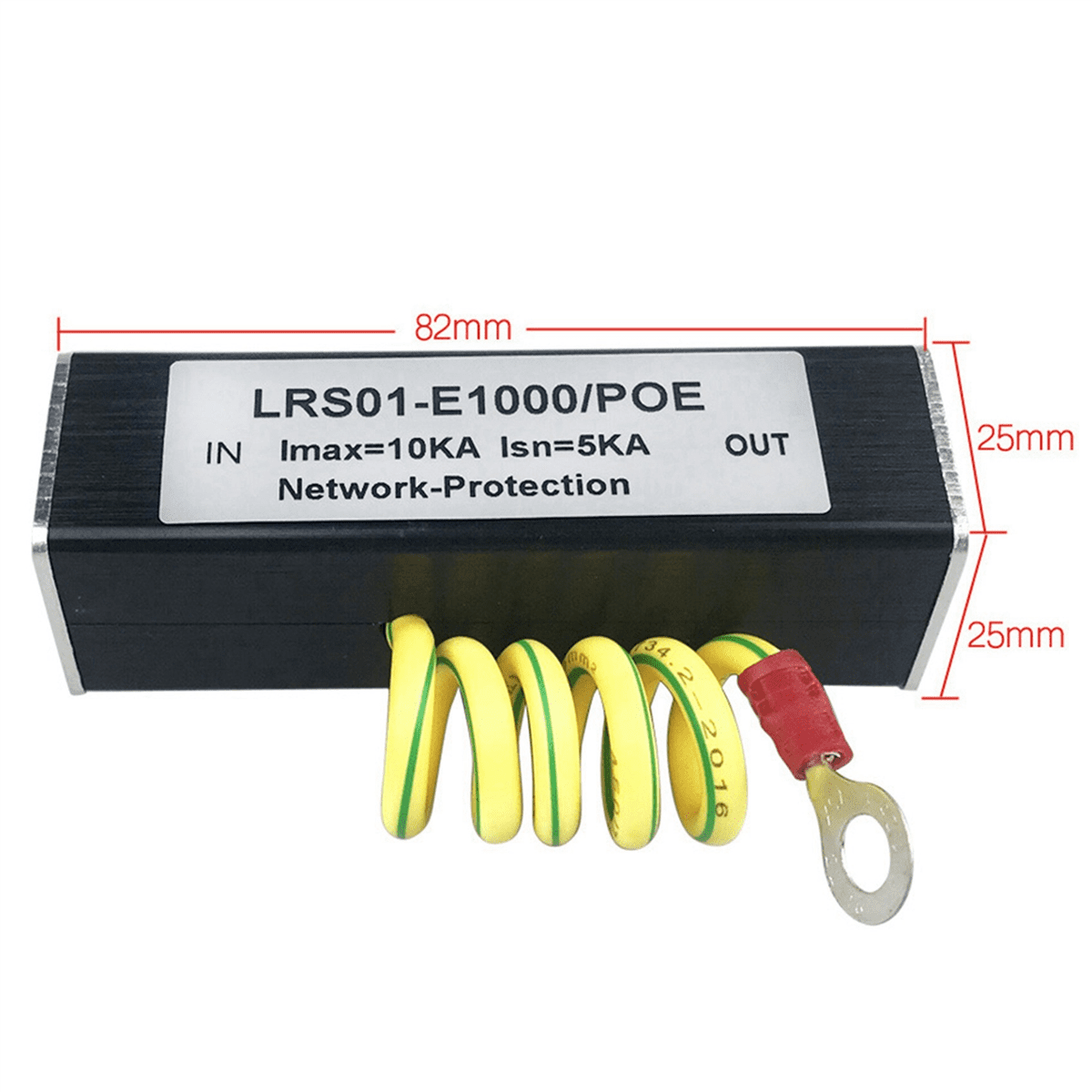

5X 100/1000M POE IP Camera Network RJ45 & POE Surge Protector Protection Device Arrester SPD 1000M

IMPORTANT<br>Two things are crucial and should NOT be missed when using the Ethernet surge protector:<br> positioning: IN on the unprotected part of cable and OUT on the side of cable.<br>Reversed installation will still allow network and operation there will be surge protection at all!<br>proper grounding: please note the yellow/green ground wire. This wire must be connected to proper electrical ground in the .<br>Ask a qualified electrician about such grounding or search the Internet for information.<br>Without proper grounding the surge protector will be unable to drain the excess voltage and will be ineffective!<br>Features of POE1000M surge protector<br>Fast energy absorption on over-voltage<br>Low resistance and capacitance - influence on data link<br>Easy in- installation: two RJ45 female connectors<br>Colour:As shown<br>Material:plastic<br><br>Package Contents:<br>5 x POE Network IP LAN Surge Protection Device<br><br>Only the above package content, other are not included.<br>Note: Light reflection and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• 100/1000M RJ45 Ethernet Cat5e/6 surge protector with PoE support. It simply installs in-line on an RJ45 Cat5e/6 cable.

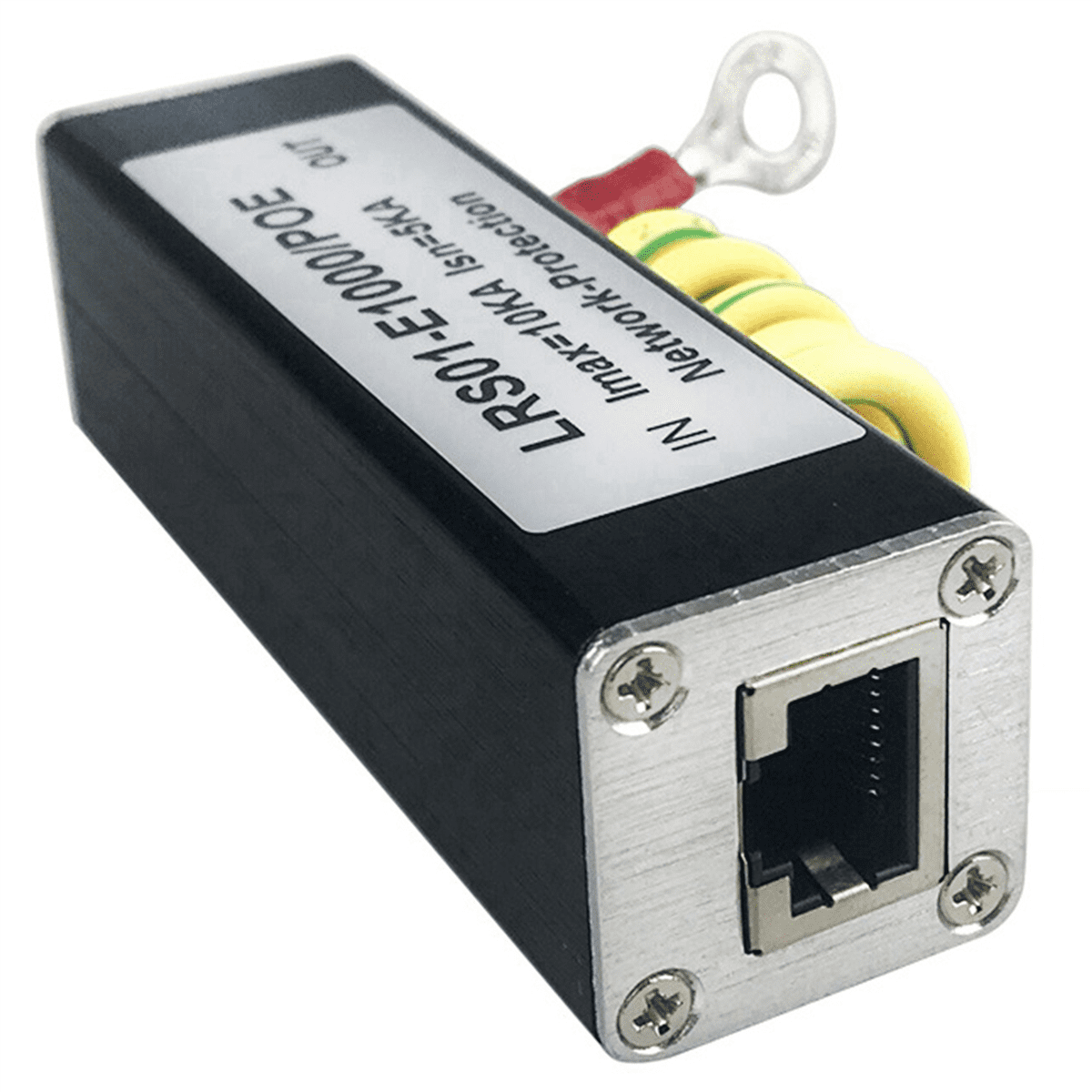

• The arrestor has two RJ45 female jacks, so the in-line installation is a very easy and straight forward.
• It protects any Ethernet devices like switches, routers, laptops/PCs,IP Camera etc from damaging surges caused by static electricity.
• Moreover, because of PoE feature it ALLOWS PoE enabled devices to remain powered while still protected against damaging strikes or voltage spikes.
